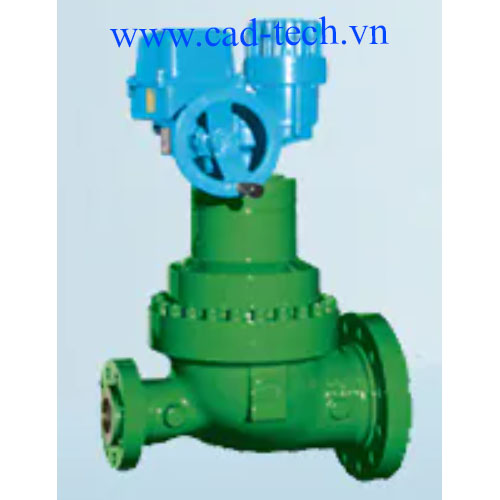

HON 530-E Control Valve
HON 530-E is an electrically operated flow control valve up to size DN 150/300. It is also equipped with incorporated SSV up to DN 150/300 to class 600 according to DIN EN 334/14382.
Features include:
- Device for flow and pressure control tasks
- Safety Shut-off Valve (SSV) for DN 25/50, DN 80/150 and DN 100/200
- Optionally: actuator systems K 10a, K 11a/1, K 11a/2, K 16, K 17, K 18, K 19
- Valve sleeve with full pressure compensation
- Noise reducing devices as a standard feature
- Bubble-tight shut-off
- Suitable for non-aggressive gases, other gases on enquiry
- CE registration according to PED
- Max. admissible pressure PS: 100 bar
- Max. inlet pressure pu max: up to 100 bar
- SSV setting range:
- For overpressure: Wdo 0.08 bar to 90 bar
- For underpressure: Wdu 0.01 bar to 90 bar
- Connection
- DIN flange PN 16, PN 40
- Flange according to ANSI 300, ANSI 600 in DN 50/100, DN 80/150, DN 100/200, DN 150/300 (Class 900 on enquiry)
- Accessories: Electronic control (e.g., for pressure and flow); Other regulating tasks according to customers' requirements
All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
