GSA-CT2

Overview

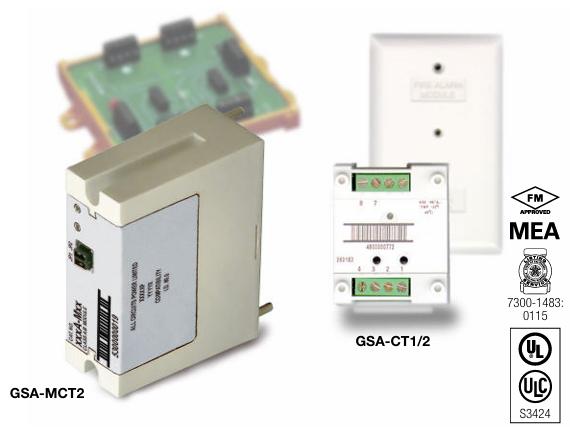

 The GSA-CT1 Single Input Module, GSA-CT1HT High
Temperature Single Input Module and GSA-CT2/GSA-MCT2 Dual
Input Modules are intelligent analog addressable devices used to
connect one or two Class B normally-open Alarm, Supervisory, or
Monitor type dry contact Initiating Device Circuits (IDC).

 The actual function of these modules is determined by the
“personality code” selected by the installer. This code is downloaded
to the module from the Signature loop controller during system
configuration.

 The input modules gather analog information from the initiating
devices connected to them and convert it into digital signals.
The module’s on-board microprocessor analyzes the signal and
decides whether or not to input an alarm.

 The GSA-CT1, GSA-CT1HT and GSA-CT2 mount to standard
North American 1-gang electrical boxes, making them ideal for
locations where only one module is required. Separate I/O and
data loop connections are made to each module.

 The GSA-CT1HT module operates at an expanded temperature
range of 32 ºF to 158 ºF (0 ºC  to 70 ºC) for those applications
requiring more extreme environmental temperature variation.

Standard Features
• Multiple applications
 Including Alarm, Alarm with delayed latching (retard) for
waterflow applications, Supervisory, and Monitor. The installer
selects one of four “personality codes” to be downloaded to
the module through the loop controller.
• GSA-CT1HT rated for high temperature environments
Suitable for attic installation and monitoring high temperature
heat detectors.
• Plug-in (UIO) or standard 1-gang mount
UIO versions allow quick installation where multiple modules
are required. The 1-gang mount version is ideal for remote
locations that require a single module.
• Automatic device mapping
Signature modules transmit information to the loop controller
regarding their circuit locations with respect to other Signature
devices on the wire loop.
• Electronic addressing
Programmable addresses are downloaded from the loop
controller, a PC, or the Signature Program/Service Tool.
There are no switches or dials to set.
• Ground fault detection by address
Detects ground faults right down to the device level.
