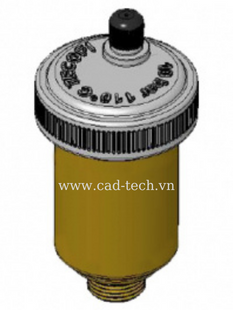

AUTOMATIC FLOAT AIR TRAP PU1100-0015

Body: Brass
Bonnet: Brass
Float : Polypropylene
O-Ring seal: EPDM
Maximum working pressure :10 bar
Maximum temperature : + 110°C
Pressure test according to standards
EN 12266-1, DIN 3230, BS 5154 and ISO 5208
Body : 15 bar
Seat : 11 bar
BSP male threaded according to standard ISO 228-1
