Tecofi

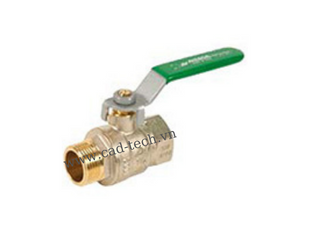

BALL VALVE BS1169FFL

Full bore BSP male ball valve/brass CW617N according to EN 12164/NF certified

  • From DN 1/4" to DN 2"
  • Fabrication according to Nf079
  • Full bore
  • Anti blow-out stem
  • Solid ball
  • Drilled ball (to avoid water stagnation between ball and body ) up to DN 1"1/2
  • PTIFE G200 packing + O ring EPDM 4270 on stem
  • Operatinq by handle.
  • Maximum working temperature : - 5°C/ + 90°C
  • Peak temperature: +110°G (maximum. 1 hour)
  • Maximum working pressure:
    • 40 bar from DN 1/2" to DN 3/4"
    • 25 bar from DN 1" to DN 1 "1/4
    • 16 bar from DN 1/2" to DN 2"
Tiêu đề Kích thước Tải về
Datasheet BS1169FFL 0,20 MB Tải về
