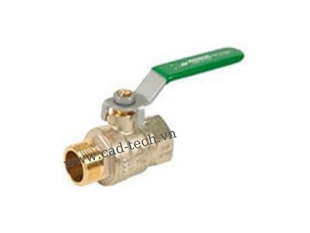

BALL VALVE MALE/FEMALE THREADED BS1169MFL

Full bore BSP male-female ball valve heavy type/industry

  • From DN1/4" to DN 2"
  • Fabrication according to NF079
  • Full bore
  • Anti blow-out stem
  • Solid ball.
  • Drilled ball ( to avoid water stagnation between ball and body ) up to DN 1"1/2
  • PTFE G200 packing + O ring EPDM 4270 on stem
  • Handle operating
  • Handle green color RAL 6029
  • Working temperature: - 5°C / +90°C
  • Peak temperature :  +110°C ( maximum 1 hour )
  • Working pressure :
    • 40 bar   - from DN1/4"  to DN 3/4"
    • 25 bar   - from DN1" to DN1"1/4
    • 16 bar   - from DN1"1/2 to DN2"
Tiêu đề Kích thước Tải về
Datasheet BS1169MFL 0,08 MB Tải về
