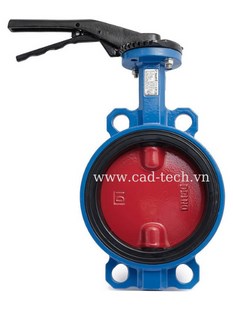

BUTTERFLY VALVE VPI4448-02EP0065
VPI butterfly valves are intented for ON/OFF or control use in fluid
transfer circuits.
Range: from DN32/40 to DN300.
Weight: 2- 28.2 kg
- Design:
- Design according to NF EN 593.
- Manufacture according to the requirements of the European directive 2014/68/UE «Equipmen under pressure»: modulate H.
- Face to face: Face to face according to standards NF EN 558 série 20, ISO 5272 série 20.
- Connection:
- Mounting between flanges ISO PN10/16 according to EN1092, ISO 7005-1.
- Adjustable between flanges ASME B16.5 Classe 150 and JIS 10K. GOST PN10/16.
- Pressure test according to standards EN12266-1 and ISO 5208:
- Body : 24 bar
- Seat : 17.6 bar
- Body : Ductile iron EN-GJS-500-7
- Disc : Ductile iron EN-GJS-500-7
- Sleeve : Heat EPDM
- Maximum working pressure : 16 bar
- (6 bar for compressed air)
- Maximum working temperature : -15°C / +130°C
- Peak temperature : -30°C / +150°C
