EVOLVING

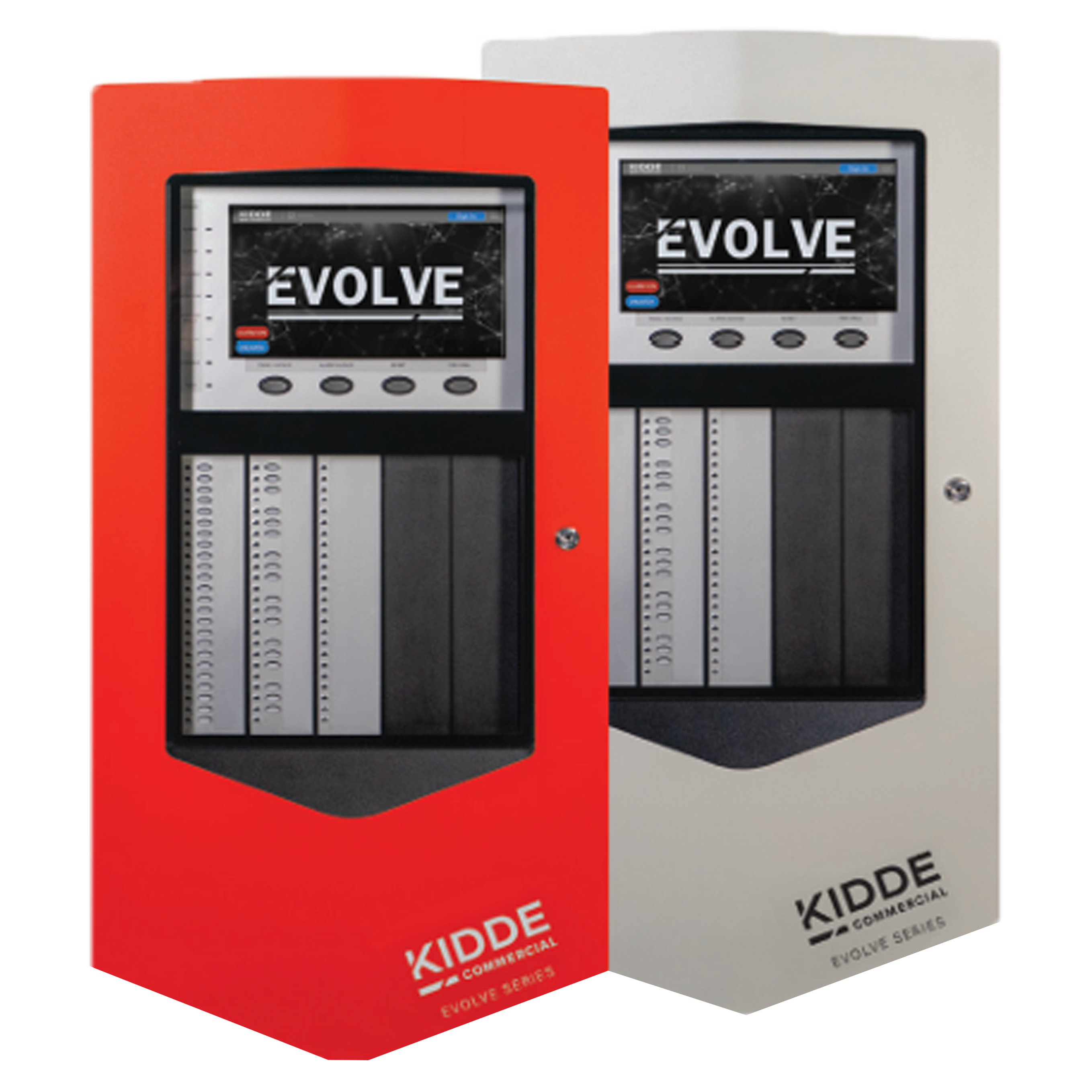

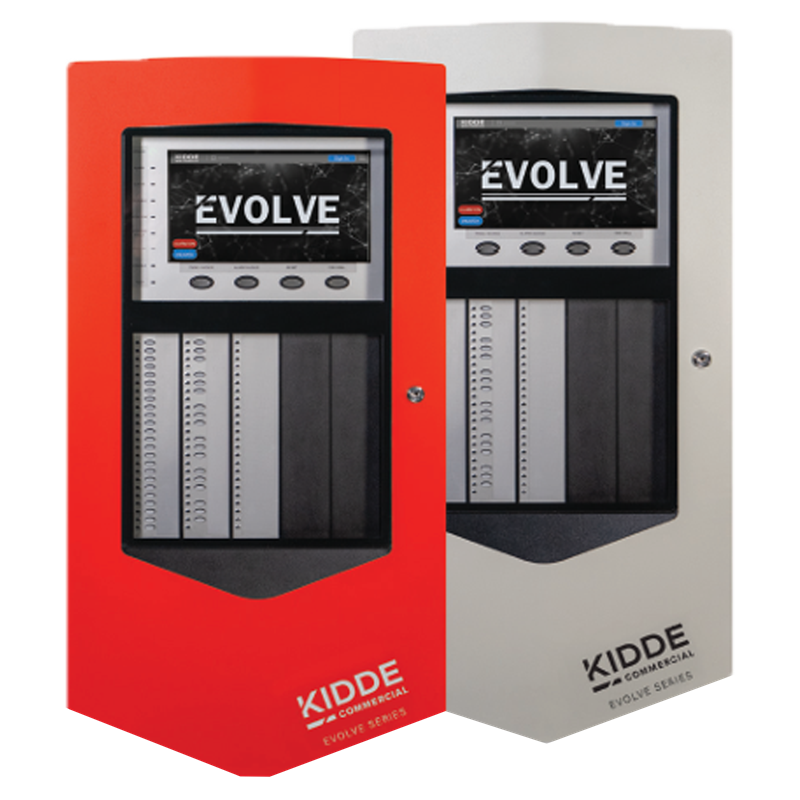

- The EVOLVE-ML panel includes a single Class A/B intelligent device loop, accommodating 250 device addresses. Loop controller modules can expand the system to 1,000 addresses in 250-address increments. The panel also features four Class A/B confi gurable Notifi cation Appliance Circuits (NACs).

- The RZI16-2 module enhances EVOLVE-ML systems, particularly for retrofi ts, by adding 16 conventional device circuits and two additional NACs, enabling the integration of intelligent detectors with existing conventional devices.

- Evolve Series supports a wide range of high-end features, including:
• 10" LCD touchscreen display/user interface
• 10A switching power supply with Voltage Boost™
• Six programmable virtual switches and supports up to 72 physical switches with LEDs (optional) and custom labeling

 FEATURES
 • Supports intelligent modules and detectors
 • Form C contacts for alarm and trouble, Form A for supervisory
 • Electronic addressing with automatic device mapping
 •  Built-in Ethernet port for central station monitoring service,
printing, local diagnostics and a variety of system reports
 •  Supports Genesis horn silence over two wires, and UL
1971-compliant strobe synchronization
 • Supports GSA-REL releasing module for sprinkler control
 • Ground fault detection by module
 • Can use existing wiring for most retrofi t applications
 • Upload/download locally
 •  Built-in USB-C port for programming using the confi guration
utility on a technician’s laptop
 • Two-level maintenance alert reporting
 • Pre-alarm and alarm verifi cation by point
 • Adjustable detector sensitivity
 • Standalone operation
 • Transmission test frequency by hour
 •  Alarm ON (functionality enabled using the EVOLVE-CU)
command manually activates alarm condition
 •  Form C contacts for Alarm, Trouble (programmable), and
Supervisory (programmable).
