KI-IB

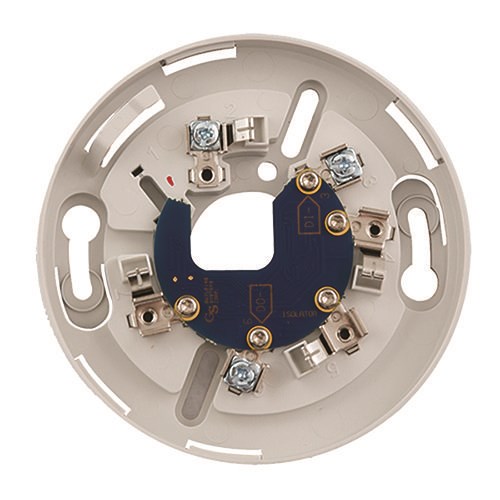

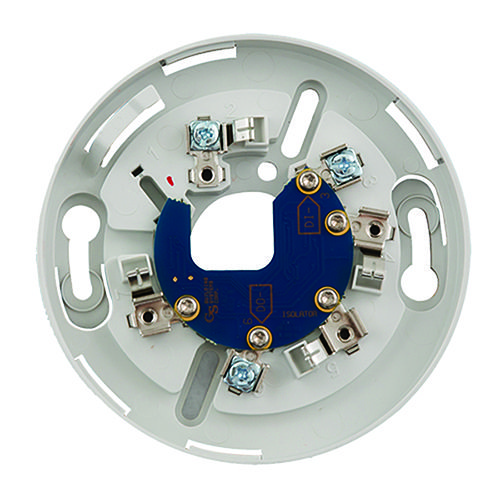

The KI-IB is a Signature Series detector base with a built-in line fault isolator for use on a Class A signaling line circuit (SLC). It does not operate without a detector and does not support the GSA-LED.
Installation
Caution: Risk of equipment damage. To prevent damage to the base,
do not overtighten the base mounting screws or wire terminal screws.
Refer to “Specifications” on page 2 for torque values.
Refer to Technical Bulletin P/N 3102483-EN for location and spacing
requirements.
To install the KI-IB:
1. Mount the KI-IB on a compatible electrical box using the screws
provided with the electrical box.
2. Wire the base as shown in the “Wiring” section.
3. Write the address assigned to the detector on the label provided
and apply the label to the inside rim of the base.
4. Use a GSA-TS trim skirt to finish the installation as needed.
Wiring
Caution: Risk of system failure. Electrical supervision requires that the wire run be broken at each terminal. Do not loop the field wires around the terminals.
Notes
• Shielded wire is required only in environments with very high
electrical noise.
• Shields, if used, must be continuous and insulated from ground.
