Honeywell

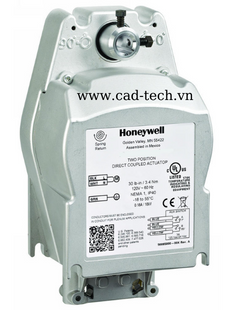

DAMPER ACTUATOR MS4609F1210

MS4604, MS4609: Line voltage (230 Vac), two-position, SPST (Series 40).


  • Minimum Damper Shaft Length:  2 in. (51 mm).
  • Device Weight: 5 lb (2.3 kg).
  • Stroke: 95° ± 3°, mechanically limited.
  • Electrical Connections:
    • Power Lead Wires:
      • MS410xF and MS460xF: 32 inches (0.8m), 18 AWG
      • MS810xF: 39 inches (1m), 18 AWG
  • Switch Lead Wires: 18 inches, 18 AWG, 2 color coded leads
  • Mounting:
    • Round 1/2 inch shaft adapter with 1/4 inch set screws.
    • Threads: ¼-20 UNC-2A
    • Material: Alloy Steel hardened to HRC 45-53
    • Thread Lock: Nylon Patch
  • IMPORTANT: Honeywell does not recommend using linkages with these actuators because side-loading of the output hub reduces actuator life.
  • Temperature Ratings:
    • Ambient: 0°F to 130°F (-18°C to 55°C).
    • Shipping and Storage: -40°F to 140°F (-40°C to 60°C).
  • IMPORTANT: The actuator is designed to meet UL555S standards at 350°F (176°C). The actuator must be tested with the damper to achieve this rating.
  • Humidity Ratings: 5% to 95% RH noncondensing.
  • Noise Rating (Maximum):
    • Driving Open: 80 dBA at 1m.
    • Holding: 20 dBA at 1m (no audible noise).
