Honeywell

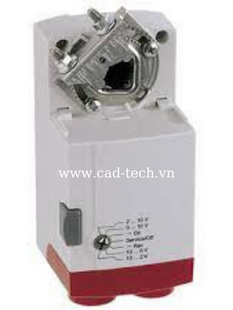

DAMPER ACTUATOR N05010

NON-SPRING RETURN DIRECT-COUPLED DAMPER ACTUATORS FOR MODULATING AND FLOATING / 2-POSITION CONTROL 24 Vac/dc

Tags: #N05010
  • Supply voltage 24 Vac/dc -15%/+20%, 50/60 Hz
  • Nominal voltage 24 Vac/dc, 50/60 Hz
  •  All values stated hereinafter apply to operation undernominal voltage conditions.
  • Power consumption
    • N05010 5 VA / 2 W
    • N10010 5 VA / 2 W
  • Control signal
    • Modulating 0...10 V
    • Floating/2-Position 24 Vac/dc
  • Ambient limits
    • Ambient operating limits -20...+60 C (-5...+140 °F)
    • Ambient storage limits -30...+80 C (-22...+176 °F)
    • Relative humidity 5...95%, non-condensing
  • Safety
    • Protection standard IP54
    • Protection class II as per EN 60730-1
    • Overvoltage category II
  • Lifetime
    • Full strokes 60000
    • Repositions 1.5 million
  • Mounting
    • Round damper shaft 8...16 mm
    • Square damper shaft 6...13 mm; 45° steps
    • Shaft length min. 41 mm
  • End switches (when included)
    • Rating 5 A (resistive), 3 A (inductive)
    • Triggering points 5° / 85°
  • Torque rating 5 Nm / 10 Nm
  • Runtime for 90°
    • mod. (dc / 50/60 Hz ac) 90 sec
    • floating (dc / 60 Hz ac) 90 sec
    • floating (50 Hz ac) 110 sec
  • Rotation stroke 95o +/- 3o
  • Weight (without cables) 450 g
  • Noise rating 35 dB(A) max. at 1 m
