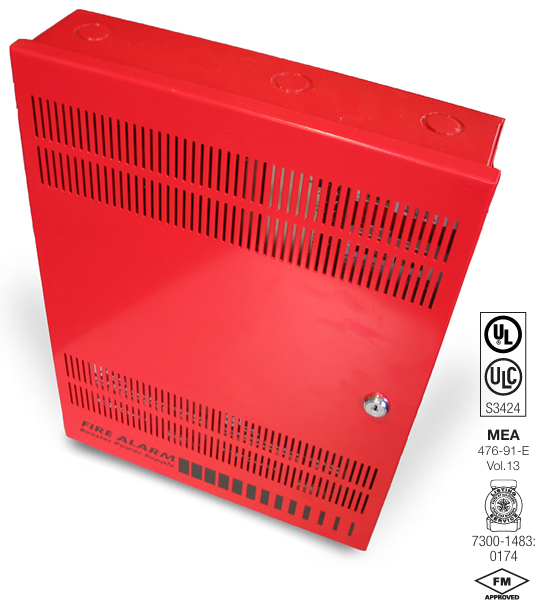

MIRBPS6A/MIRBPS6AC

 Standard Features
 • Allows for reliable filtered and regulated power to be installed
where needed
 • Cost effective system expansion
 • Provides for Genesis and Enhanced Integrity notification ap
pliance synchronization
 • Supports coded output operation
 • Self-restoring overcurrent protection
 • Multiple signal rates
 • Can be cascaded or controlled independently
 • Easy field configuration
 • On-board diagnostic LEDs identify wiring or internal faults
 • Standard Kidde keyed lockable steel cabinet with removable
door
 • 110 and 230 Vac models available
 • Accommodates 18 to 12 AWG wire sizes
 • Optional tamper switch
 • Dual battery charging rates
 • Optional earthquake hardening: OSHPD seismic pre-approval
for component Importance Factor 1.5

Application
The MIRBPS provides additional power and circuits for notification appliances and other 24 Vdc loads. It is listed for indoor dry loca tions and can easily be installed where needed.

Fault conditions are indicated on the on-board diagnostic LEDs, opening the MIRBPS input sense circuit and the trouble relay (if programmed). While this provides indication to the host system, the MIRBPS can still be activated upon command. A separate AC Fail contact is available on the MIRBPS circuit board, which can be programmed for trouble or AC Fail. There are seven on-board diagnostic LEDs: one for each NAC fault, one for battery fault, one for ground fault, and one for AC power.

 The unique dual-input activation circuits of the MIRBPS can be
activated by any voltage from 6 to 45 VDC (filtered-regulated) or
11 to 33 Vdc (full-wave rectified, unfiltered). The first input circuit
can be configured to activate 1-4 of the four possible outputs. The
second input circuit can be configured to control circuits 3 and 4.
When outputs are configured for auxiliary operation, these circuits
can be configured to stay on or automatically deactivate 30 sec
onds after AC power is lost. This feature makes these circuits ideal
for door holder applications. The MIRBPS also has a separate 200
mA 24 Vdc output that can be used to power internal activation
modules.

 MIRBPS NACs can be configured for a 3-3-3 temporal or continu
ous output. This makes the MIRBPS ideal for applications requir
ing signaling rates that are not available from the main system.

 In addition to the internally generated signal rates, the MIRBPS
can also be configured to follow the coded signal rate of the main
system NACs. This allows for the seamless expansion of existing
NACs.

 The MIRBPS enclosure has mounting brackets for up to three
Signature modules to the right of the circuit board.
