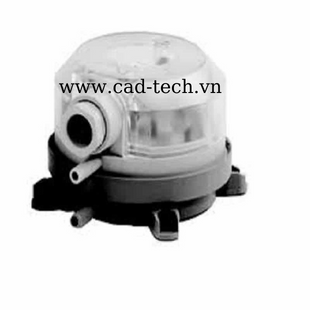

Công tăc áp suất DPS Series

Kind of pressure: overpressure, relative

Pressure connection: plastic connection piece for 5 mm (internal) hose

Electrical connection: AMP connector 6,3x0,8 (DIN 46244) or screw terminals

IP class: IP54

Sensing element material: ABS + Silicon

Media temp. : -20 ... 85 ^oC

Ambient temperature: -20 ... 85 ^oC

Switch function/capacity: SPDT switch 240 Vac; 1,5 A (0.4)A

Certificates: CE0085AR0013 according EC Gas Appliance Directive EU/2016/426 and DIN EN 1854

Medium type: air

Max. pressure: 10 kPa

Additional description: Accessories supplied with pressure switch: 2 m silicon hose, 2 connection pieces with mounting screws, 2 self tapping screws for mounting on housing, 3 screw terminals for electrical connection
