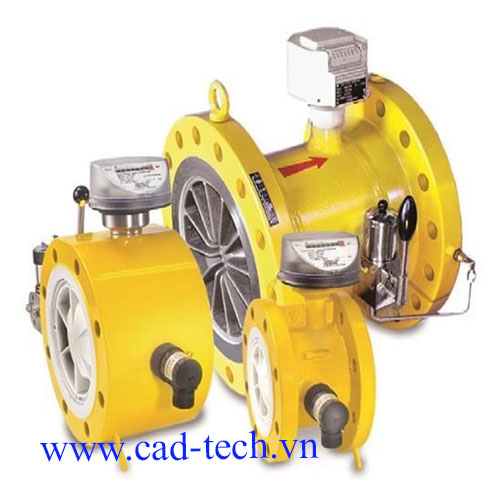

Gas Meter Q/Q75

Honeywell Elster Quantometers are highly reliable turbine gas meters, which are used in many industrial applications to determine the actual flow rate as well as consumption over a period of time fulfi lling requirements of industrial, non-fiscal metering. The Q/Q75 offering is mainly used for heavier industral applications where the Q Type is available for sizes up to DN150/6” and the Q75 cover the range from DN200/8” to DN600/24”. For light industrial applications Quantometers QA/Qae Are recommended.

For fiscal applications Honeywell offers fiscally approved meters e.g.  TRZ2 and SM-RI-X turbine meters and the RABO rotary gas meter.

Feature

• Compact Dimensions (short pattern)
• High performance to price ratio
• Meter sizes G65 to G16.000
• Flow ranges 6 – 25.000 m3/h
• Measuring range up to 1:20
• Meter size DN50 (2”) to DN 600 (24”)
• Meter body material: Cast Iron or Steel
• Temperature range:  -10°C to +60°C (others on request)
• Flange connections acc. to EN or ASME
• Protection class IP67 (suitable for outdoor installation)
• Index: 8-digits mechanical roller counter
• Two low frequency outputs as standard
• High metering accuracy
• Approvals: DVGW, ATEX, PED
