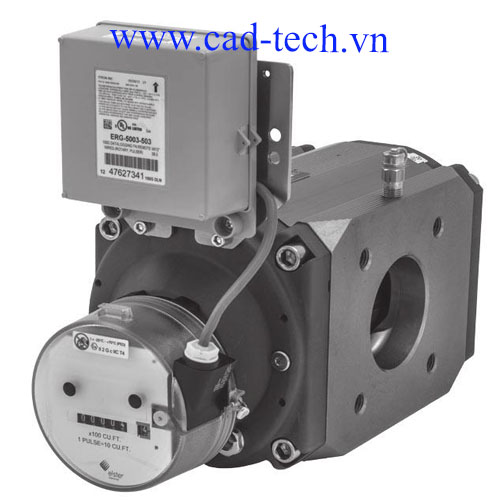

Rotary Gas Meter RABO
Highly Accurate Rotary Meter
- MAOP 290 psig
- Temperature range -40 F to +140 F
- Meets ANSI B109.3
- Approvals pursuant to MID/PED/ATEX directives
- Media: dry natural gas, noncorrosive industrial gases.
Honeywell Elster has combined tried and tested product features of their RPM and IRM rotary meter product lines with new developments into a single product. The new Honeywell Elster Rotary Gas Meter offers a feature set that meets virtually all market applications in one simple design. Rotary-All-By-One, simply, all-in-one!
Main Features
- 4 meter sizes
- 3,500 to 14,000 acfh Maximum Capacity
- 2”, 3” and 4” ANSI 125/150 flanged connections
- High rangeability across the flow range
- Low pressure drop
- Differential pressure taps on inlet and outlet with Pete’s Plugs®
- Non-lubricated and non-resettable index
- End view, rotatable index
- Heavy duty, compact design
- High impact-resistant, ultraviolet stabilized index cover
- Anodized extruded aluminum body and impellers
- Anodized forged aluminum case covers
- Permanently lubricated bearings
- 10ft3 output on all meter sizes
Options
- Pulse outputs
- Thermowell
- Index masking
- Gasket strainers
- Flange bolts and gaskets
- AMR mounting
- Differential pressure gauge kit
- Instrument Drive
| Tiêu đề | Kích thước | Tải về |
|---|---|---|
| Rotary Gas Meter RABO | 2,40 MB | Tải về |
