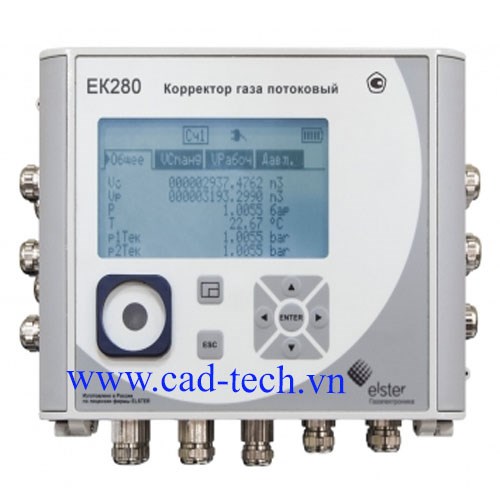

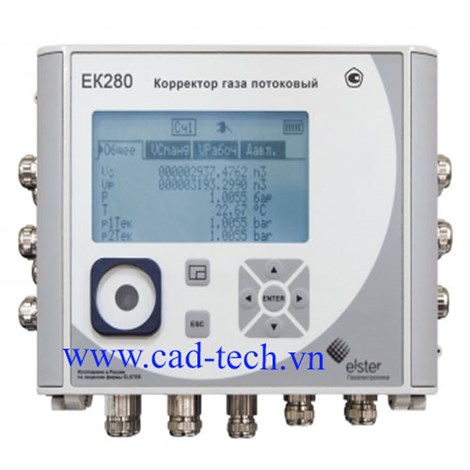

Volume Converter EK280
Electronic volume conversion device with optional integrated communication module and configurable data interface
- Volume conversion for billing purposes
- Data recording for various applications
- Station monitoring
The EK280 is a compact, battery-powered volume conversion device, which can be connected to diaphragm, turbine or rotary gas meters. As an alternative to recording the flow-proportional pulses for the operating volume (LF or HF), the EK280 can also read the original meter readings from the Absolute ENCODER index of a gas meter. The volume conversion device calculates the conversion factor C and the compressibility K on the basis of the consumption data and the analogue measurements of gas temperature and pressure. The volumes and flow rates at base conditions and flow rates at measurement conditions will be calculated using this initial data.
- MID approval
- Compressibility calculated by various methods
- Integrated data logging function
- Archives with flexible configuration
- Suitable for use in Ex-Zone 0/1 potentially explosive atmospheres
- 6 digital inputs (LF, HF, encoder)
- 4 freely programmable, sealable digital outputs
- Various communications protocols
- Optical interface for parameterization and readout
- Configurable serial interface RS232/RS422/RS485
- Software update based on Welmec 7.2
