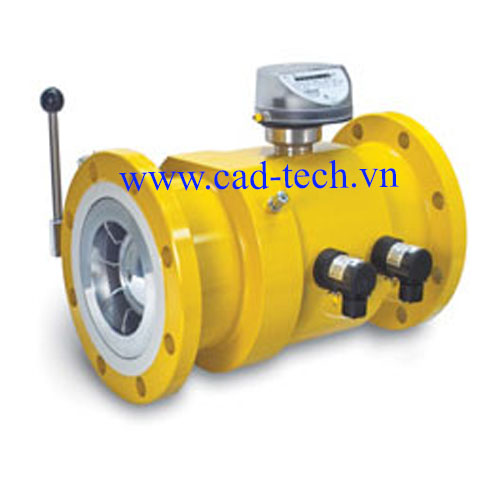

Gas Meter TRZ2

Honeywell Elster TRZ2 turbine gas meters are robust meters used to accurately and reliably measure gas consumption in gas distribution, industrial plants or for commercial users. Over decades they have proven to be highly accurate from the first calibration on to the end of their lifetime many years later. This is why leading gas distribution companies around the globe rely on the TRZ2 for their standard gas metering applications.

Feature

• MID approval for fi scal measurement
• Conformity to EN12261, PED, ASME, ATEX and IECEx
• Lowest measurement uncertainty
• High repeatability
• Patented Measuring Cartridge
• Aluminum fl ow straightener
• Meter sizes G65 to G1.000
• Max. measuring range 5 to 1.600 m3/h
• Nominal diameters DN 50 to 150 (2” to 6”)
• Operating pressure from 0 to 100 barg
• Flange rating in PN 10-100 and ANSI 150-600
• Temperature range: -25 °C to +70 °C (acc. MID)
• Compact installation with inlet pipe length L = 2 DN
• Thermowell built into meter housing (optional)
• Integrated HF-pulser (optional)
• Absolute ENCODER (optional)
• Direct mount of Honeywell EVC (optional)
• Designed for natural gas, town gas,butane, air, nitrogen, other gases on request
