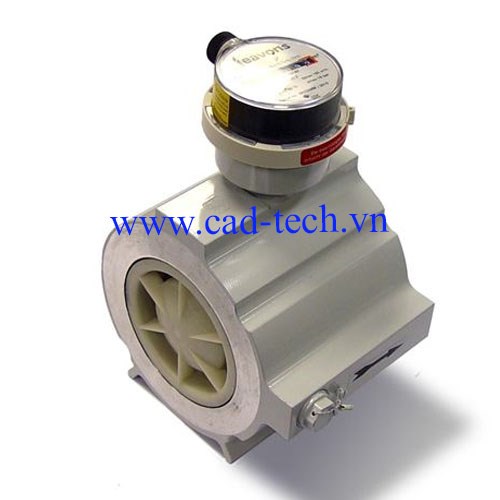

GAS METER QA/QAe
Applications: Gas meter for natural gas, Air, Methane, Nitrogen, other non-orosive gases
Function: In-plant Allocation Metering, Volume Input for Controls, Consumption Monitoring for Burners, Boilers, Furnaces etc.
Honeywell Elster Quantometers are highly reliable turbine gas meters, which are used in many industrial applications to determine the actual flow rate as well as consumption over a period of time fulfilling requirements of industrial, non-fiscal metering. For fiscal applications Honeywell offers fiscally approved meters e.g.
TRZ2 turbine meter and the RABO rotary gas meter.
Feature
- Compact Dimensions
- Meter sizes QA/e 10 – QA/e 1000
- Flow ranges 1.6 –1600 m3/h
- Measuring range up to 1:20
- Meter size DN25 to DN 150
- Meter body material: Aluminum
- Temperature range:
- QA: -10°C to +60°C
- QAe: 0°C to +50°C
- Maintenance-free
- Protection class IP52 (QA), IP44 (QAe)
- Index: 7-digits
- QAe LCD display showing:
- totalized actual volume
- current flow rate
- main daily values
- back-flow volume
- High metering accuracy
- Approvals: DVGW, ATEX, PED
| Tiêu đề | Kích thước | Tải về |
|---|---|---|
| GAS METER QA/QAe | 0,26 MB | Tải về |
