Volume conversion EK220
Volume conversion device with flexible data logging function and configurable serial interface:
- Volume conversion for billing purposes
- Data logging for different applications
- Monitoring of measurement values and station functions

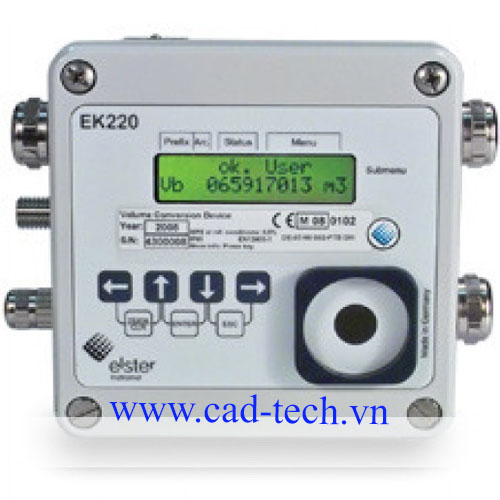

The EK220 is a battery-operated volume converter. The device records the low frequency operating volume pulses of a gas meter, measures the operating pressure and temperature of the gas and calculates the compressibility K as well as the conversion factor C. The standard volumes, standard flow rates and operating flow rates can be calculated using this initial data.
In addition to volume conversion and data logging, the EK220 may be used for the flexible data recording of different measurements and, in conjunction with either a modem or RTU, for system monitoring.
- T, PT, PTZ volume conversion
- Conforms to European standard EN 12405
- MID approval
- Compressibility calculated in accordance with different methods
- Flexible, integrated data logging function
- High accuracy
- Mains-free operation
- Suitable for use in Zone 1 hazardous areas
- Three digital inputs
- Four freely programmable, sealable digital outputs
- Various communication protocols
- IEC 62056-21
- Modbus
- IDOM
- Optical interface for parameterisation and readout (IEC 62056-21)
- Integrated serial interface can be used as RS232 or RS422/RS485
| Tiêu đề | Kích thước | Tải về |
|---|---|---|
| Volume conversion EK220 | 0,07 MB | Tải về |
