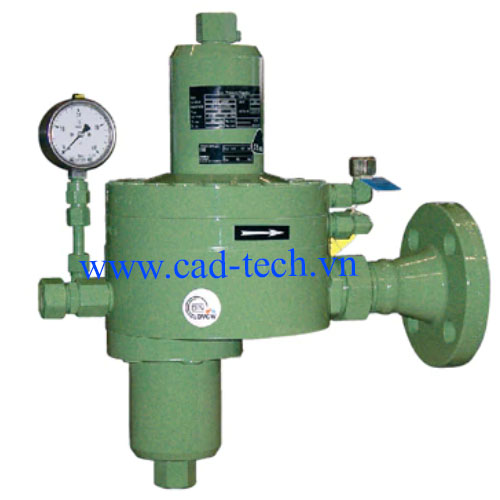

HON 201 Direct-Acting Regulator
Honeywell HON 201 is a direct-acting gas pressure regulator that conforms to the DIN EN 334 standards. It is an ideal solution for industrial and process applications, and for low-load lines in gas pressure regulating stations.
Features include:
- Two-stage device
- Suitable for large pressure differences
- With safety relief valve in:
- intermediate pressure stage
- control stage (up to pd max 0.5 bar)
- Easy operation, monitoring, maintenance
- Pipe connection for use with SSVs HON 703 and/or 704
- Suitable for non-aggressive gases, other gases on enquiry
- CE registration according to PED
- Max. admissible pressure = PS 100 bar
- Max. inlet pressure pu max: up to 100 bar
- Outlet pressure range Wd: 0.02 bar up to 2 bar
- Class of lock-up pressure zone SZ 2.5
- Connection:
-
Inlet: Pipe connections according to DIN EN ISO 8434-1 (DIN 2353), for pipe diameters 12 mm, 16 mm, 18 mm
- Outlet: Pipe connections according to DIN EN ISO 8434-1 (DIN 2353), for pipe diameters 12 mm, 16 mm, 18 mm, 22 mm, 25 mm, 28 mm, 38 mm, 42 mm Flange in PN 40 or Class 300, Class 600 according to ANSI 16.5 transition pieces in DN 25, DN 40, DN 50
-
All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
