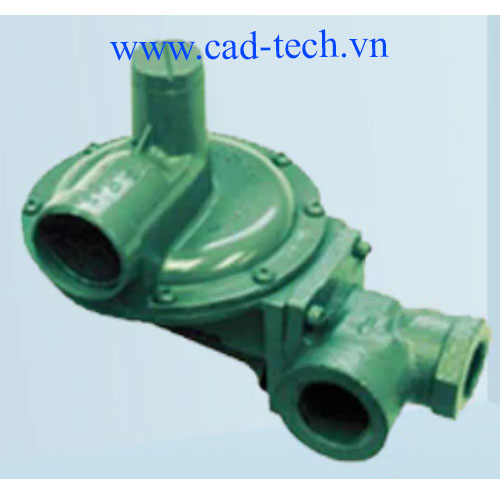

HON 260 Regulator
The HON 260 gas pressure regulator is ideal for deployment at offtake stations in gas systems as well as commercial and industrial facilities. It offers fast reactivity with the possibility of installing different valve seat diameters.
Features include:
- Diaphragm housing may be turned 180 degrees with respect to main valve body
- Fast reactivity
- Installation of different valve seat diameters possible
- Regulator can be installed in any position (without vent limiting device)
- May be optionally fitted with a Safety Relief Valve for over-pressure (OPCO) or over-pressure/ under-pressure release (UPCO/OPCO)
- Suitable for natural, non-aggressive and manufactured gases; nitrogen, carbon dioxide and propane; and other gases upon enquiry
- Max. inlet pressure pu max: up to 10 bar
- Outlet pressure range Wd: 0.01 to 0.385 bar
- Connection
- Angular type: Inlet: ½", ¾", 1"; Outlet: 1"
- Straight type: Inlet: ½", ¾", 1"; Outlet: ½", ¾", 1"
- Type: F with incorporated filter
- Temperature range: 40 to 60 °C
All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
