Honeywell

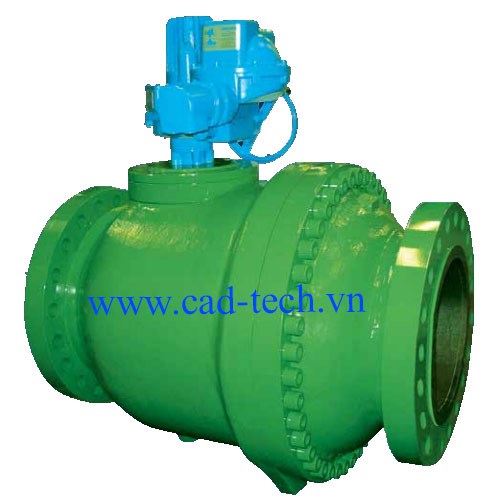

HON 530-E WG Control Valve

Honeywell offers the HON 530-E WG flow control valve with an electric actuator for electronic flow or pressure control in accordance with the DIN EN 334 standard. It is ideal for feeding gas into and/or withdrawing gas from gas storage facilities and important gas mains. ​​​​​​

Features include:

  • Valve sleeve with full pressure compensation
  • Noise reducing devices as a standard feature
  • Bubble-tight shut-off
  • Axial flow high KG value depending on the pipe size
  • In case of a current failure, valve remains in its last position
  • Control speeds are frequency-dependent and are set by means of a frequency converter depending on operating conditions
  • Suitable for non-aggressive gases, other gases on enquiry
  • CE-registration according to PED
  • Max. admissible pressure PS: 100 bar
  • Max. inlet pressure pu max: up to 100 bar
  • Connection: Flange Class 600 and Class 900 according to ANSI 16.5

All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
