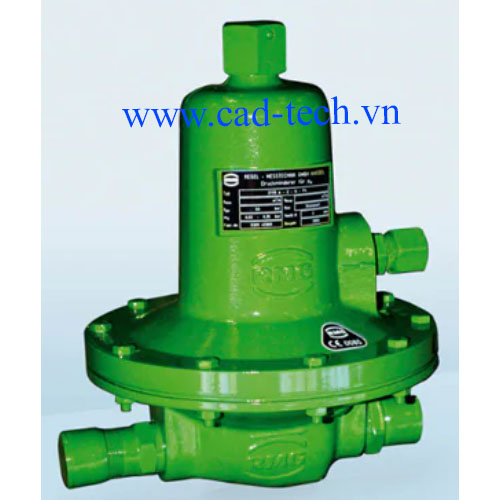

HON 219 Single-Stage Regulator
The HON 219 (D 119a) direct-acting pressure reducer conforms to the DIN EN 334 standard and is suitable for industrial and process applications.
Features include:
- Bubble-tight sealing at zero flow
- Integrated safety relief valve
- Easy operation and monitoring
- Suitable for non-aggressive gases, other gases on enquiry
- SEP registration according to PED
- Max. admissible pressure PS = 50 bar
- Max. inlet pressure pu max: up to 50 bar
- Outlet pressure range Wd: 8 mbar up to 8 bar
- Connection: Inlet ₃/₄" male; Pipe connections according to DIN EN ISO 8434-1 (DIN 2353), for pipe diameters 10 mm, 12 mm, 16 mm
- Connection: Outlet ₃/₄" male
All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/9/EC). All electronic accessories, on the other hand, meet ATEX requirements.
