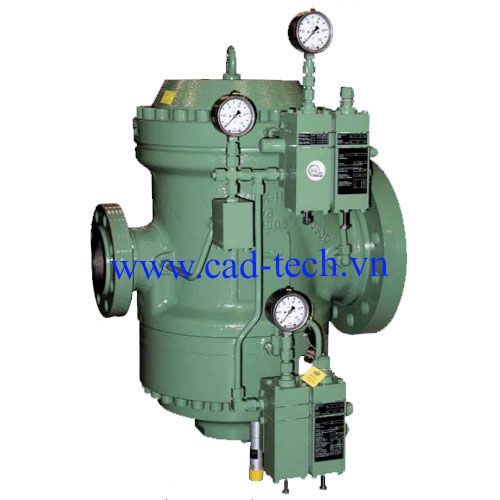

HON 505 Gas Regulator
HON 505 is a pilot-operated active gas pressure regulator according to DIN EN 334. It operates with auxiliary energy from the inlet pressure range.
Features include:
- Device used for gas distribution
- Compact design
- Active and monitor regulator in one housing
- Active with fail-open function
- Monitor with fail-close function
- Fewer parts, easy to maintain, quiet operation
- Suitable for non-aggressive gases, other gases on enquiry
- CE registration according to PED
- Max. admissible pressure PS: 100 bar
- Max. inlet pressure pu max: up to 100 bar
- Outlet pressure range Wd: 0.3 bar to 90 bar
- Minimum pressure drop: 2 bar, others on enquiry
- Max. pressure drop: 90 bar
- Class of lock-up pressure zone: SZ 2.5
- Active regulator applicable with pilot:
- HON 630 (two-stage design)
- HON 630-1 (single-stage design) for inlet pressure variation up to 15 bar
- Monitor regulator applicable with pilot: HON 650 (single/double stage design)
- Connection
- DIN flange PN 40
- Flange Class 300, Class 600 according to ANSI 16.5
- With pipe sizes inlet/outlet - DN 50/100, DN 80/150, DN 100/200
All mechanical components of this device are without ignition sources. As such, they are not subject to ATEX 95 (94/9/EC). All electrical components used with this device fulfil the ATEX requirements.
