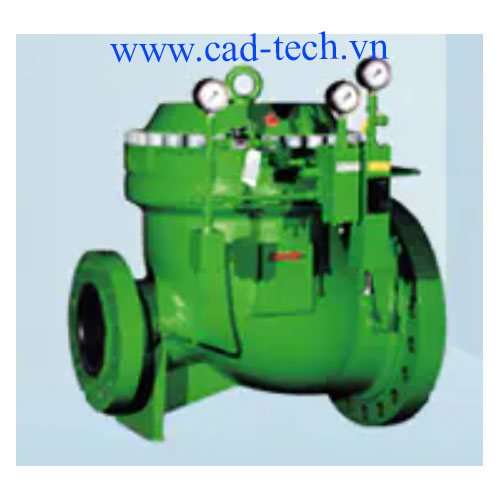

HON 502 Gas Regulator

Honeywell offers the HON 502 pilot-operated gas pressure regulator according to DIN EN 334 (operating with auxiliary energy from the inlet pressure range). It is ideal for use at transfer stations in gas transport networks for power plants and industrial facilities​.

Features include:

  • Wide inlet pressure range
  • Pilot Series HON 630
  • HON 630-1 (formerly HON 640), single stage type for inlet pressure variation < 15 bar
  • Outlet DN double as inlet DN
  • Fewer parts, easy to maintain, quiet operation
  • Grid plate for noise reduction
  • Also available with metal foam for additional noise reduction
  • Suitable for non-aggressive gases, other gases on enquiry
  • CE registration according to PED
  • Max. admissible pressure PS: 100 bar
  • Max. inlet pressure pu max: up to 100 bar
  • Outlet pressure range Wd: 0.3 bar to 90 bar
  • Min pressure drop: approx. 1.5 bar, others on enquiry
  • Max. pressure drop: 90 bar
  • Class of lock-up pressure zone: SZ 2.5
  • Connection: Flange PN 40 and Flange Class 300, Class 600 according to ANSI 16.5 with pipe sizes inlet/outlet - DN 25/50, DN 50/100, DN 80/150, DN 100/200, DN 150/300, DN 200/300

All mechanical components of this device are without potential ignition sources and/ or hot faces. They are not subject to ATEX 95 (94/ 9/ EC). All electronic accessories, on the other hand, meet ATEX requirements.
