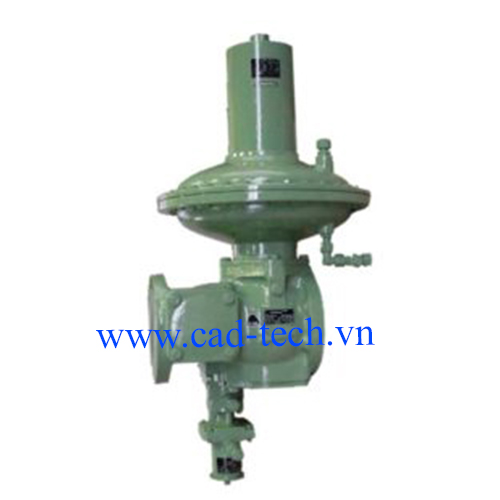

Van Giảm áp HON370
HON 370 is a spring loaded, direct acting gas pressure regulator according to DIN EN 334 (operating with auxiliary energy from the inlet pressure range) with incorporated direct-acting SSV according to DIN EN 334/ 14382. It is the ideal device for offtake stations in gas transmission as well as commercial and industrial facilities.
Features include:
- Excellent for dynamic regulating lines (i.e., gas furnaces)
- Diaphragm assembly with inlet pressure compensation optionally with Safety Relief Valve (SRV) or safety diaphragm
- Optionally available with Safety Shut-off Valve (SSV) with in-line flow
- Noise reduction optional
- Very easy to maintain due to exchangeable functional units (cartridge assembly)
- Suitable for non-aggressive gases; other gases on enquiry
- CE registration according to PED
- Max. admissible pressure PS: 20 bar
- Max. inlet pressure pu max: up to 20 bar
- Outlet pressure range: Wd 20 mbar up to 4 bar
- Class of lock-up pressure zone: SZ 2.5
- SSV setting range
- Wdo 25 mbar up to 5.2 bar
- Wdu 5 mbar up to 400 mbar
- SRV setting range: Wd 15 up to 90 mbar above Pds
- Connection: DIN flange PN 16 or Class 150 according to ANSI 16.5, DN 25 thru DN 150
- Other flange types on enquiry
All mechanical components of this device are without ignition sources. As such, they are not subject to ATEX 95 (94/9/EC). All electrical components used with this device fulfil the ATEX requirements.
| Tiêu đề | Kích thước | Tải về |
|---|---|---|
| HON 370 Gas Regulator | 0,67 MB | Tải về |
